This innovative Wiring Hub is what makes the American Vintage Ignition accessory wiring easy and reliable. The Wiring Hub eliminates the mass of tangled wires and confusing diagrams that would have been required to install a complete ignition system down to a plug and play add on to the ignition module. The Wiring Hub can be installed at the same time as your American Vintage Ignition or can be added later as new options become available.
Designed to look like an old school relay module, the hub can be mounted in a convenient location away from the engine or under the dash.
KEEPS YOUR CAR LOOKING ORIGINAL:

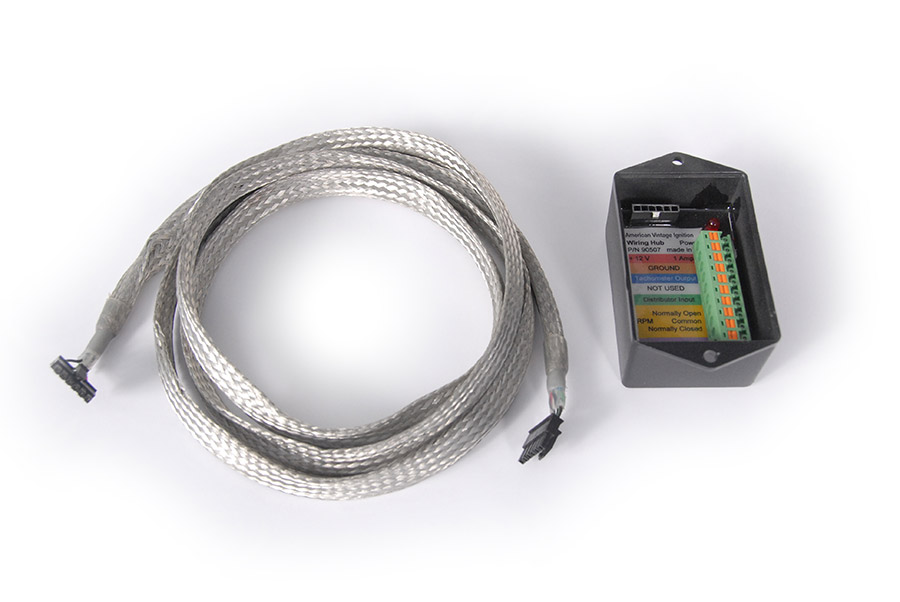

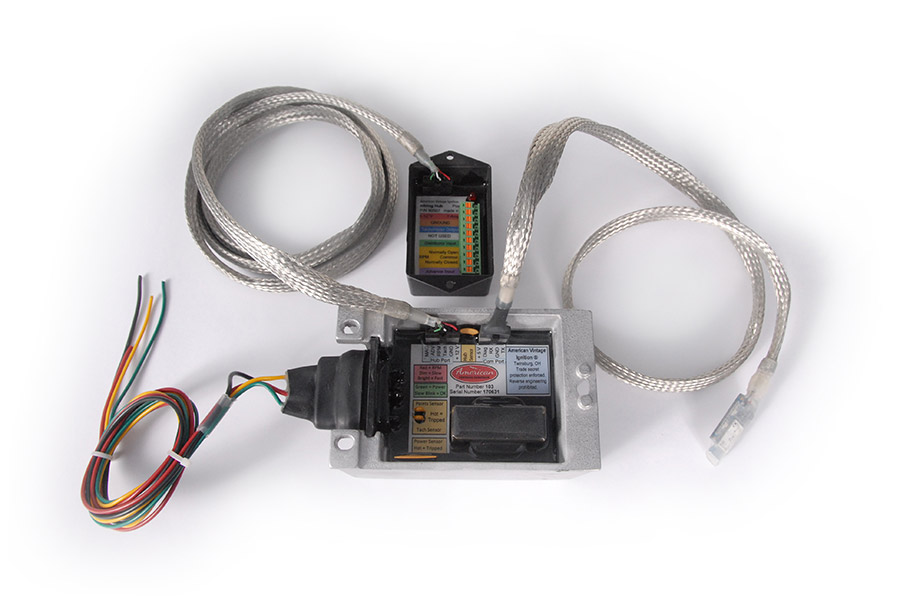

The American Vintage Ignition module and the Wiring Hub are connected with a dedicated communications cable disguised by an old school braided ground wire of the type used on vintage engines. The wiring hub resembles relay modules used on vintage engines, once mounted, the wire connections are hidden.
NO CRIMPS, NO MESS, NO HEADACHES:
Simple plug and play features eliminates the need for wire crimps and complicated wiring diagrams. Wires are cut and stripped, then inserted into the wire bus for a secure connection without the need for special tools or wire crimps.
The Wiring Hub expands the American Vintage Ignition features for only those that you will use. Wires from a shift light and other ignition accessories connect directly to the Wiring Hub, eliminating crimp connections and unused harness wires from the ignition system harness.

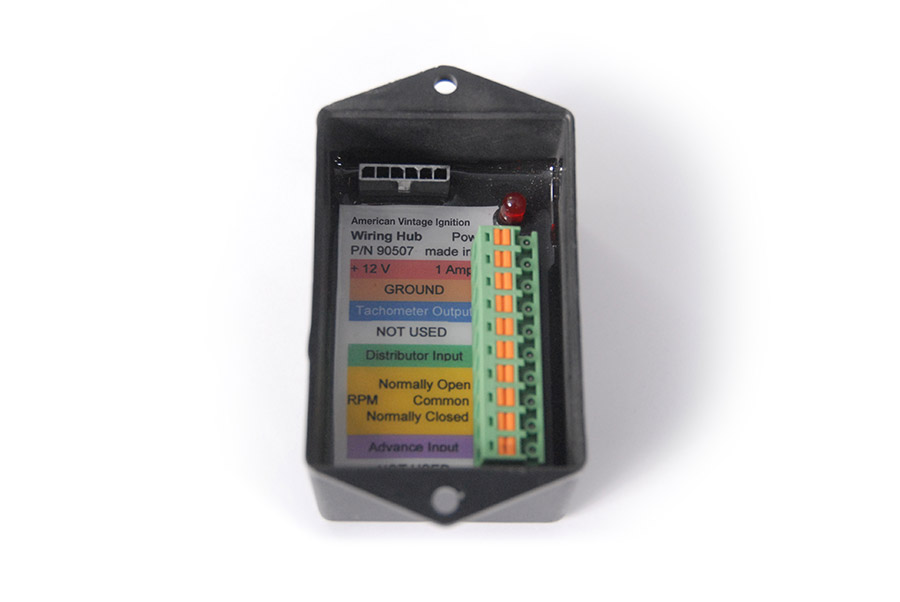

Once all the wires needed are snapped into the bus, the bus is plugged into the Wiring Hub. There is no need to interpret complicated wiring diagrams, the Wiring Hub terminals are clearly marked so you know exactly where each wire goes.
Adding functions to your American Vintage Ignition is as easy as unplugging the wire bus from the Wiring Hub, adding wires to the bus and then plugging the bus back into the Wiring Hub.
NO DIALS, NO SWITCHES, NO PROBLEMS
There are no dials, switches or jumpers to configure that can fail over time. Use your computer or cell phone to make secure, reliable configuration changes.
STRONG, YET FORGIVING:
The Wiring Hub is self-diagnosing and self-resetting. Like the American Vintage Ignition module, the Wiring Hub features on board diagnostics and overload protection.
The basic Wiring Hub provides these features:
Additional features being offered with the Optional Wiring Hub:
